CYLINDER

EXHAUST VALVE FOR SUZUKI RG 500 1987

CRANKCASE

(1) 33970-20A00-000

REORDER ROBINSONS
ACTUATOR ASSY,EXHAUST VALVE

(2) 01550-0825A-000

BOLT

(3) 11269-20A04-000

CONTROLLER PULLEY
PULLEY,CONTROLLER

(4) 07120-0520B-000

BOLT

(5) 11256-20A02-000

VALVE,EXHAUST LH

(6) 11257-20A02-000

VALVE,EXHAUST RH

(7) 11258-20A02-000

CAP,EXHAUST VALVE

(8) 11268-20A01-H17

GASKET
GASKET,EXHAUST VALVE

(9) 02112-0616A-000

SCREW
SCREW, FRONT FENDER

(10) 11263-20A02-000

HOLDER,EXHAUST VALVE NO.1

(11) 11264-20A02-000

HOLDER,EXHAUST VALVE NO.2

(12) 11262-20A00-000

PLATE,HOLDER

(13) 02112-0620A-000

SCREW
SCREW (BLACK)

(14) 02112-0630B-000

SCREW
SCREW (BLACK)

(15) 11266-20A02-000

PULLEY,EXHAUST VALVE FRONT

(16) 11267-20A02-000

PULLEY,EXHAUST VALVE REAR

(17) 01500-06207-000

BOLT
BOLT, ADJUSTER

(18) 02322-21067-000

WASHER

(19) 11259-20A01-000

COVER,HOLDER

(20) 02112-0640A-000

SCREW

(21) 09282-12004-000

OIL SEAL

(22) 09283-16002-000

OIL SEAL

(23) 11276-20A00-000

CABLE ASSY
CABLE ASSY,EX VALVE FRONT

(24) 11277-20A00-000

CABLE ASSY
CABLE ASSY,EX VALVE REAR

	Part number	Description	Qty
# 1	33970-20A00-000 3397020A00000 3397020A00000	REORDER ROBINSONS ACTUATOR ASSY, EXHAUST VALVE	Not available	£0,00
# 2	01517-08256-000 01550-0825A-000 0151708256000	BOLT	£2,70
# 3	11269-20A03-000 11269-20A04-000 1126920A03000	CONTROLLER PULLEY PULLEY, CONTROLLER	£62,09
# 4	07120-05208-000 07120-0520B-000 0712005208000	BOLT	£4,04
# 5	11256-20A02-000 1125620A02000 1125620A02000	VALVE, EXHAUST LH	Not available	£0,00
# 6	11257-20A02-000 1125720A02000 1125720A02000	VALVE, EXHAUST RH	Not available	£0,00
# 7	11258-20A02-000 1125820A02000 1125820A02000	CAP, EXHAUST VALVE	Not available	£0,00
# 8	11268-20A00-000 11268-20A01-H17 1126820A00000	GASKET GASKET, EXHAUST VALVE	£13,27
# 9	02112-06164-000 02112-0616A-000 0211206164000	SCREW SCREW, FRONT FENDER	£2,03
# 10	11263-20A02-000 1126320A02000 1126320A02000	HOLDER, EXHAUST VALVE NO.1	Not available	£0,00
# 11	11264-20A02-000 1126420A02000 1126420A02000	HOLDER, EXHAUST VALVE NO.2	Not available	£0,00
# 12	11262-20A00-000 1126220A00000 1126220A00000	PLATE, HOLDER	Not available	£0,00
# 13	02112-06205-000 02112-0620A-000 0211206205000	SCREW SCREW (BLACK)	£2,02
# 14	02112-06305-000 02112-0630B-000 0211206305000	SCREW SCREW (BLACK)	£2,21
# 15	11266-20A02-000 1126620A02000 1126620A02000	PULLEY, EXHAUST VALVE FRONT	Not available	£0,00
# 16	11267-20A02-000 1126720A02000 1126720A02000	PULLEY, EXHAUST VALVE REAR	Not available	£0,00
# 17	01107-06208-000 01500-06207-000 0110706208000	BOLT BOLT, ADJUSTER	£3,24
# 18	02322-21067-000 0232221067000 0232221067000	WASHER	Not available	£0,00
# 19	11259-20A01-000 1125920A01000 1125920A01000	COVER, HOLDER	Not available	£0,00
# 20	02112-06405-000 02112-0640A-000 0211206405000	SCREW	£2,35
# 21	09282-12004-000 0928212004000 0928212004000	OIL SEAL	Not available	£0,00
# 22	09283-16002-000 0928316002000 0928316002000	OIL SEAL	Not available	£0,00

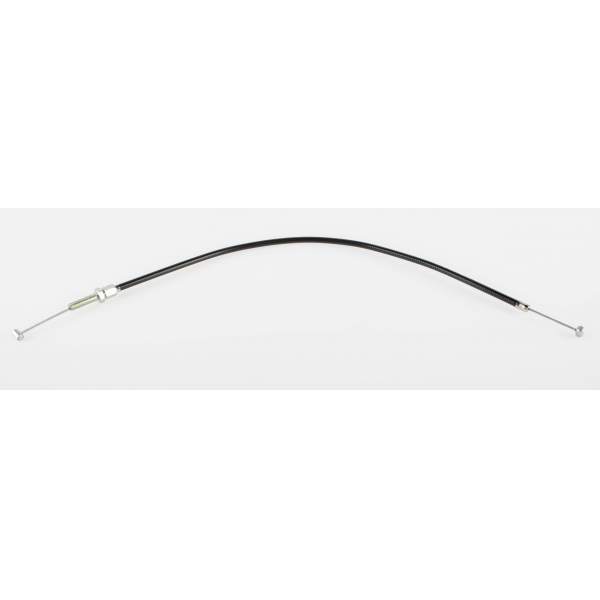

# 23	11276-20A00-000 1127620A00000 1127620A00000	CABLE ASSY CABLE ASSY, EX VALVE FRONT	Not available	£0,00

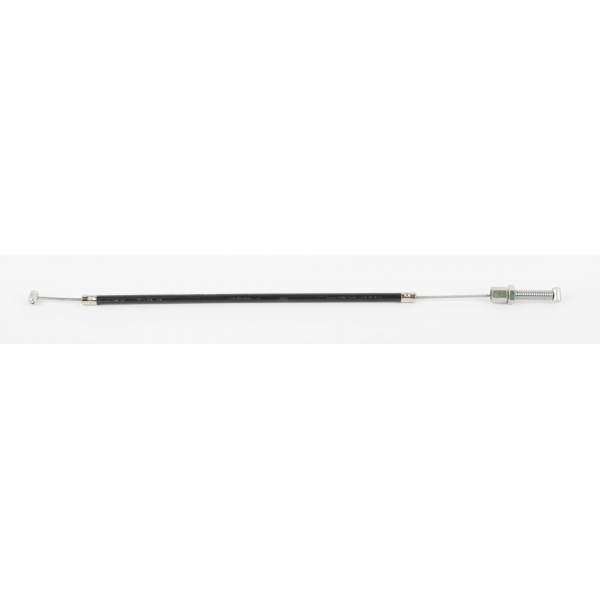

# 24	11277-20A00-000 1127720A00000 1127720A00000	CABLE ASSY CABLE ASSY, EX VALVE REAR	Not available	£0,00
