CLUTCH FOR SUZUKI RG 500 1987

TRANSMISSION

(1) 21200-21830-000

PRIMARY DRIVEN GEAR
GEAR,PRIMARY DRIVEN (NT:58)

(2) 09160-22044-000

WASHER
WASHER (22X42X2.5)

(3) 09263-30031-000

BEARING
BEARING (30X35X26.8)

(4) 21410-21A10-000

HUB,SLEEVE

(5) 09160-22041-000

WASHER
THRUST WASHER (22X40X1.5)

(6) 09167-22005-000

WASHER

(7) 09140-22005-000

NUT

(8) 21441-43D00-000

CLUTCH DRIVE PLATE
PLATE,DRIVE

(9) 21451-22D30-000

CLUTCH DRIVEN PLATE
PLATE,DRIVEN (T:1.6)

(10) 21471-20A00-000

SEAT,WAVE WASHER

(11) 21481-20A01-000

RING
RING,STOPPER

(12) 09164-00005-000

WASHER
WAVE WASHER

(13) 21462-20A01-000

DISC,CLUTCH PRESSURE

(14) 09440-20015-000

SPRING

(15) 01500-0616A-000

BOLT KICK STARTER STOPPER
BOLT, CENTER

(16) 09160-06066-000

WASHER
.WASHER (6.5*20*1.6)

(17) 23165-21A12-000

RACK,CLUTCH RELEASE

(18) 23261-20A01-000

CLUTCH RELEASE PINION
PINION, CLUTCH RELEASE

(19) 09160-15045-000

WASHER
WASHER (15X20X1)

(20) 09263-15003-000

ROLLER BEARING
BEARING (15X20X2)

(21) 09285-10004-000

OIL SEAL
OIL SEAL (10X17X5)

(22) 23271-20A01-000

ARM,RELEASE

(23) 01500-06207-000

BOLT
.BOLT, LEVER HOLDER

(24) 09135-06009-000

BOLT

(25) 08322-0106A-000

WASHER
LOCK WASHER

(26) 09380-15001-000

CIRCLIP

	Part number	Description	Qty
# 1	21200-21830-000 2120021830000 2120021830000	PRIMARY DRIVEN GEAR GEAR, PRIMARY DRIVEN (NT:58)	Not available	£0,00

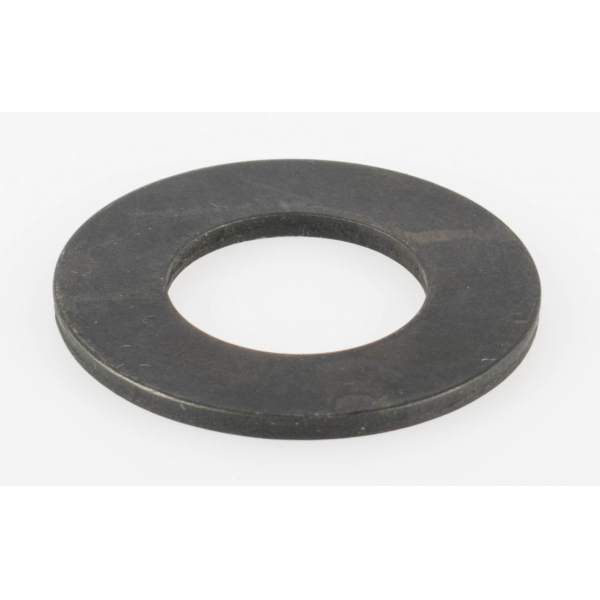

# 2	09160-22044-000 0916022044000 0916022044000	WASHER WASHER (22X42X2.5)	Not available	£0,00
# 3	09263-30016-000 09263-30031-000 0926330016000	BEARING BEARING (30X35X26.8)	£23,16
# 4	21410-21A10-000 2141021A10000 2141021A10000	HUB, SLEEVE	Not available	£0,00

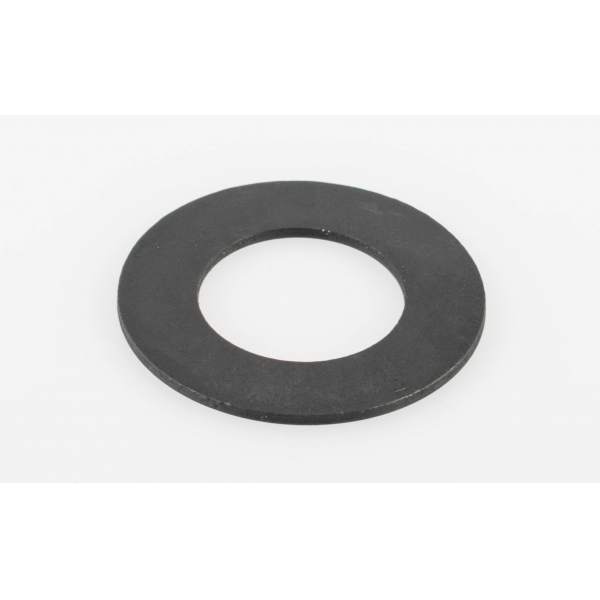

# 5	09160-22041-000 0916022041000 0916022041000	WASHER THRUST WASHER (22X40X1.5)	Not available	£0,00
# 6	09167-22005-000 0916722005000 0916722005000	WASHER	£3,43
# 7	09140-22005-000 0914022005000 0914022005000	NUT	£5,06
# 8	21441-20A02-000 21441-43D00-000 2144120A02000	CLUTCH DRIVE PLATE PLATE, DRIVE	£24,62
# 9	21452-20A01-000 21451-22D30-000 2145220A01000	CLUTCH DRIVEN PLATE PLATE, DRIVEN (T:1.6)	£12,18
# 10	21471-20A00-000 2147120A00000 2147120A00000	SEAT, WAVE WASHER	Not available	£0,00
# 11	21481-20A01-000 2148120A01000 2148120A01000	RING RING, STOPPER	Not available	£0,00
# 12	09164-00005-000 0916400005000 0916400005000	WASHER WAVE WASHER	Not available	£0,00
# 13	21462-20A01-000 2146220A01000 2146220A01000	DISC, CLUTCH PRESSURE	Not available	£0,00
# 14	09440-20015-000 0944020015000 0944020015000	SPRING	Not available	£0,00
# 15	01107-06166-000 01500-0616A-000 0110706166000	BOLT KICK STARTER STOPPER BOLT, CENTER	£2,83
# 16	09160-06020-000 09160-06066-000 0916006020000	WASHER .WASHER (6.5201.6)	£2,59
# 17	23165-21A10-000 23165-21A12-000 2316521A10000	RACK, CLUTCH RELEASE	£43,87
# 18	23261-20A00-000 23261-20A01-000 2326120A00000	CLUTCH RELEASE PINION PINION, CLUTCH RELEASE	£73,69
# 19	09160-15015-000 09160-15045-000 0916015015000	WASHER WASHER (15X20X1)	£6,54
# 20	09263-15003-000 0926315003000 0926315003000	ROLLER BEARING BEARING (15X20X2)	£5,35
# 21	09285-10002-000 09285-10004-000 0928510002000	OIL SEAL OIL SEAL (10X17X5)	£2,59
# 22	23271-20A01-000 2327120A01000 2327120A01000	ARM, RELEASE	Not available	£0,00
# 23	01107-06207-000 01500-06207-000 0110706207000	BOLT .BOLT, LEVER HOLDER	£3,24
# 24	09135-06009-000 0913506009000 0913506009000	BOLT	£3,82
# 25	08322-21067-000 0832221067000	WASHER LOCK WASHER	Not available	£0,00
# 26	09380-15001-000 0938015001000 0938015001000	CIRCLIP	£2,28
